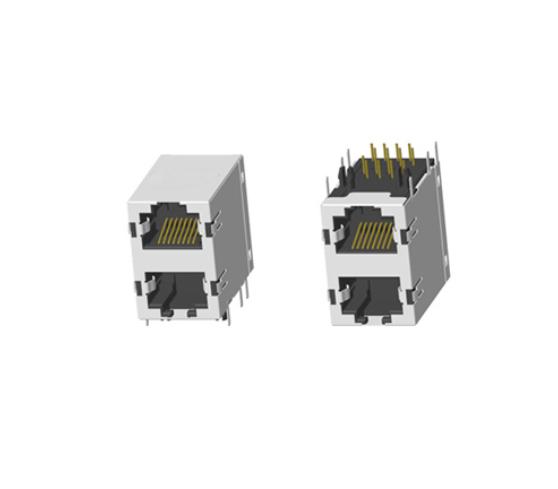

RJ45 5921 ; 2X1 ports ; Without LED ; With metal shield（EMI Fingers） . PCB Retaining Post: hollow(Type B）

Connector type：RJ45 5921
Number of Ports：2X1 ports
Integrated transformer：No.
Turns Ratio RX：No.
Main electrical parameters：
Open/Short test pass.
LED option：No.
Contact Mating Area Plating：
Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''
Shield EMI Tabs：Yes.
Working temperature：
0 - 85 degree Celsius or -40 - 85 degree Celsius.
Storage temperature：
-40 - 85 degree Celsius
Suitable for welding type ：
Wave-soldering(Normal) or Reflowsolding(Alternative).
Product standard：
Meets IEEE 802.3 specification.
RoHS Compliant：Yes.
REACH Compliant：Yes.
Quality as surance：
Electrical performance 200% test passed.
Packing specification：
S .W. ( g )：15.763 ; Quantity : 60pcs/Tray ; 600pcs/Carton; G. W. ( kg ) : 11.358
